Question:
- What are the recommended settings for Barco QAWeb Calibration software?
- How do I change the frequency of Barco QAWeb auto-calibration and compliance tests?
- How do I manually run a Barco QAWeb calibration and compliance test?
- Where do I find my previous calibration and compliance test reports in QAWeb?
- Barco QAWeb is not auto-calibrating and/or running the compliance test on the frequency you need
Solution:
Please follow steps below to properly install, configure and perform a full calibration and compliance test on your Barco monitors using Barco QAWeb.
Before you start, please make sure that your USB Type-B cable is connected from your monitors to your computer.

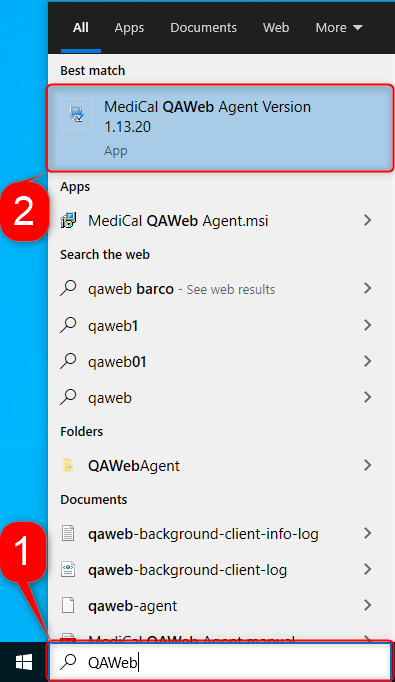

Open MediCal QAWeb Agent calibration software. You can search for the software in the search bar next to the Start Menu
Wait for QAWeb to detect the configuration

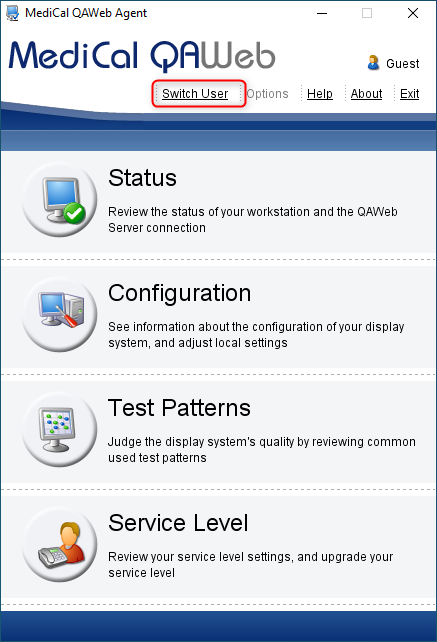

Click on Switch User
Type password: advanced then press OK

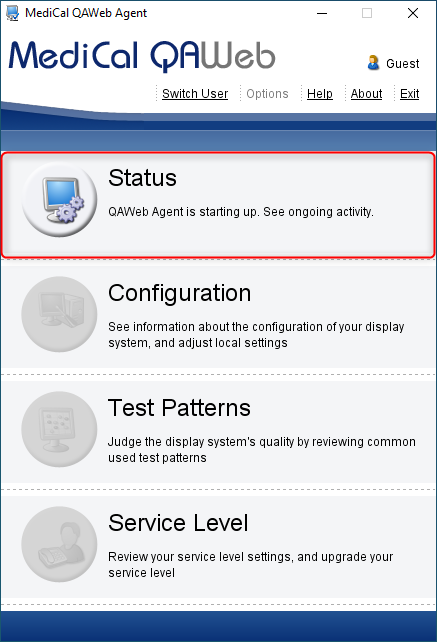

Click Status

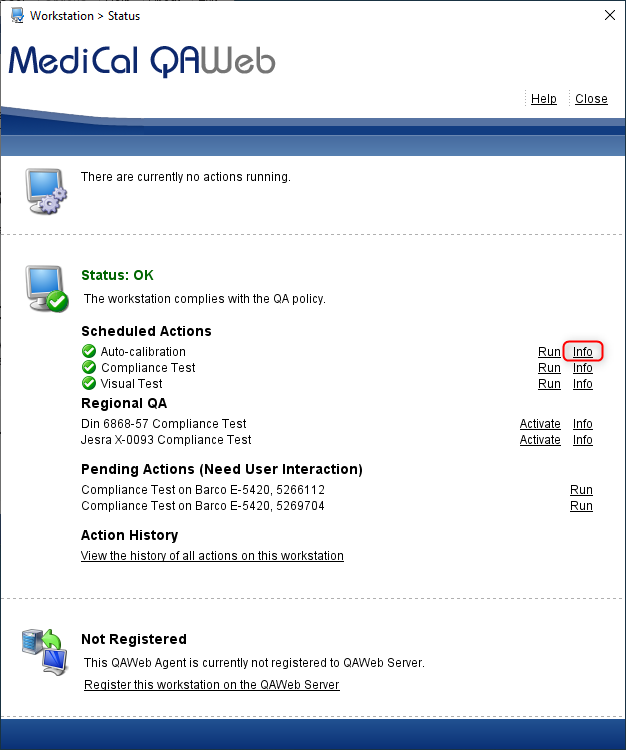

On Auto-calibration, click Info

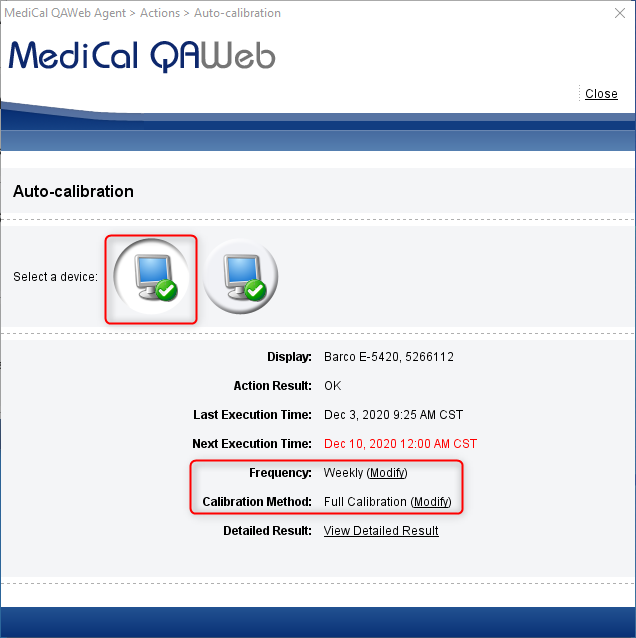

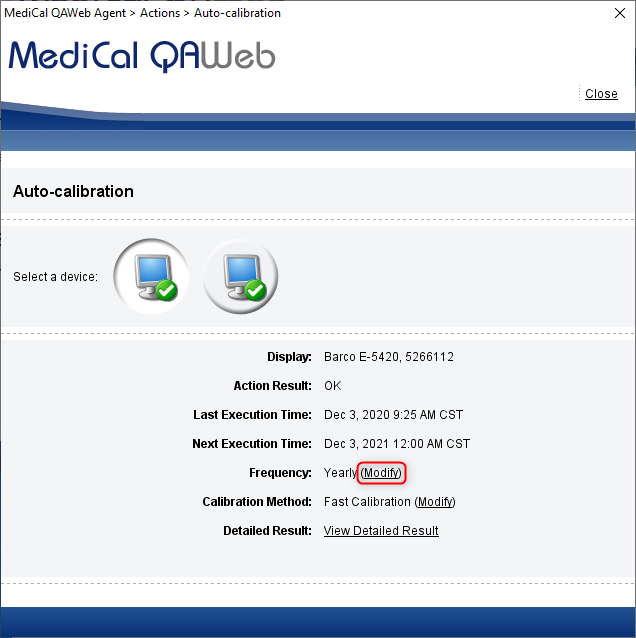

On Frequency, click Modify

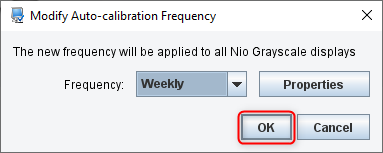

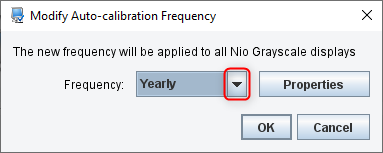

Change Frequency to Weekly then click OK. For Mammography, select Daily

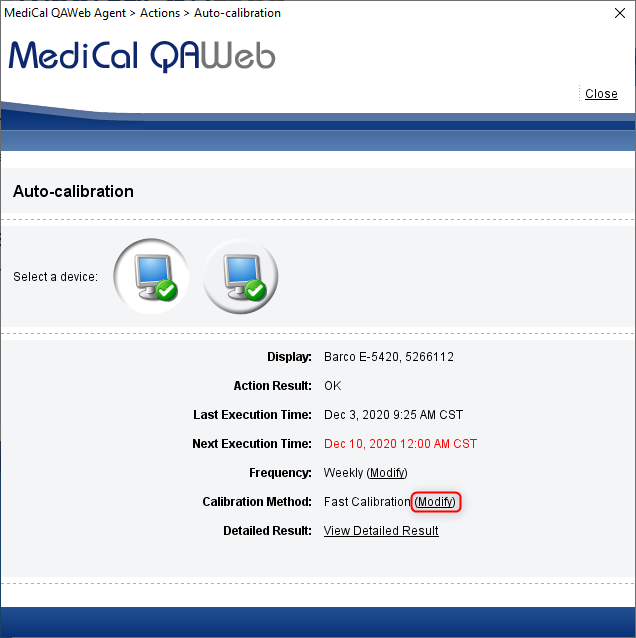

On Calibration Method, Click Modify
Select Full Calibration then click OK

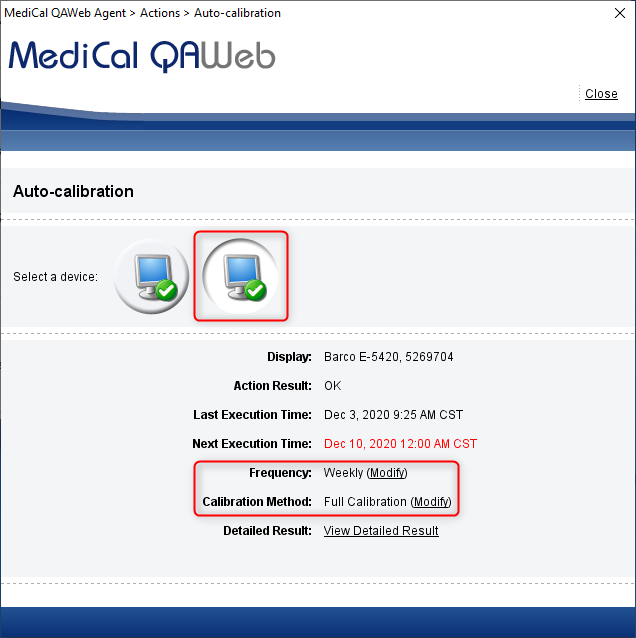

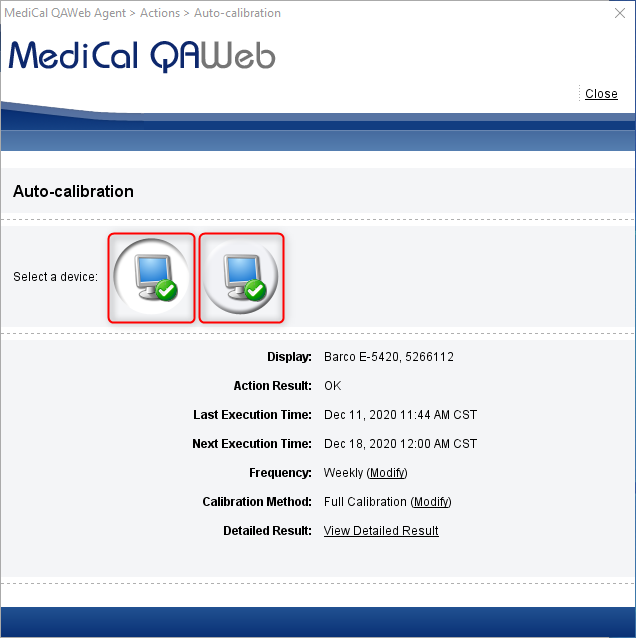

Verify changes on all monitors

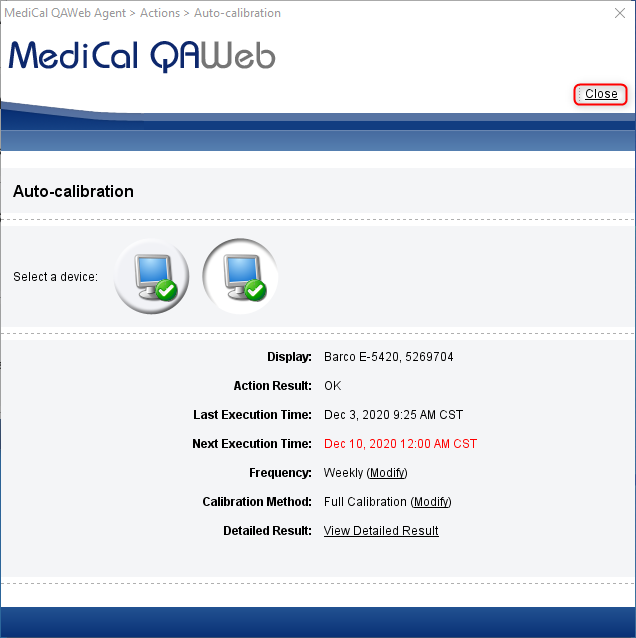

Click Close

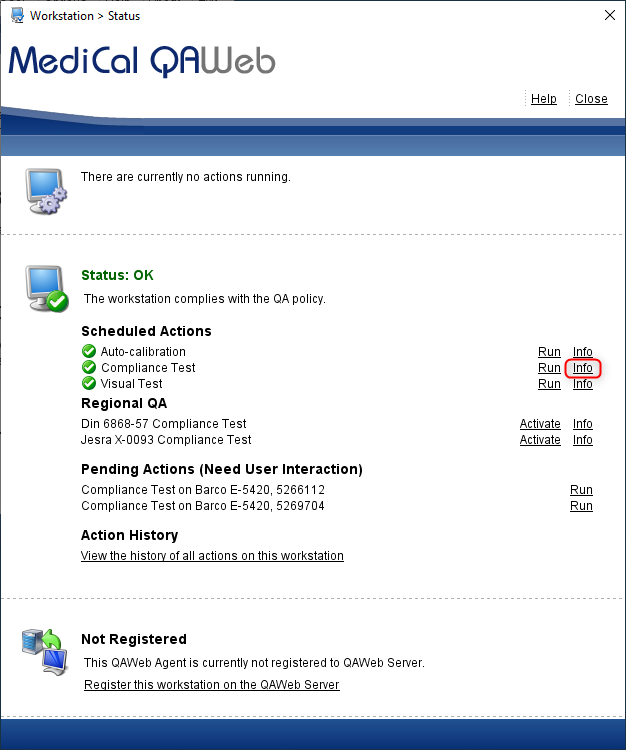

On Compliance Test, click Info

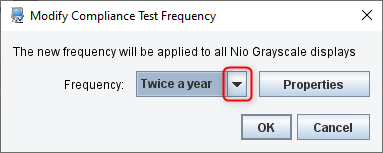

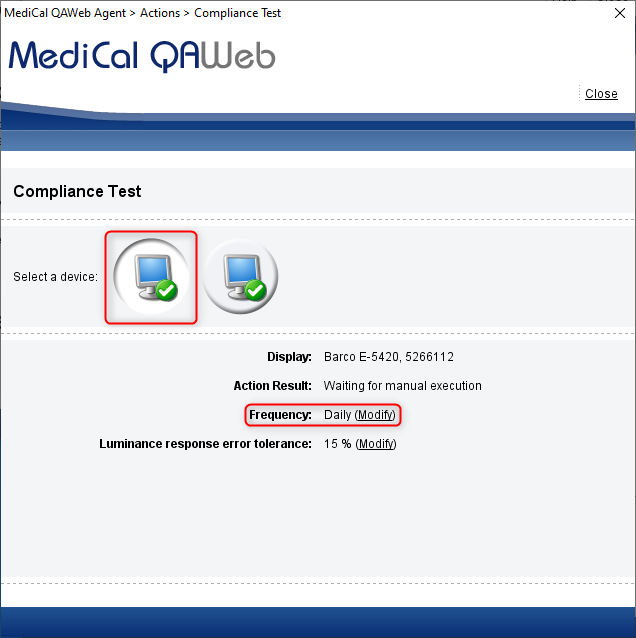

On Frequency, click Modify

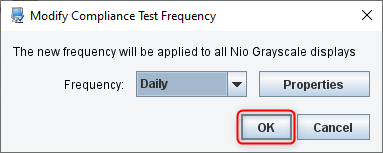

Change Frequency to Daily then click OK.

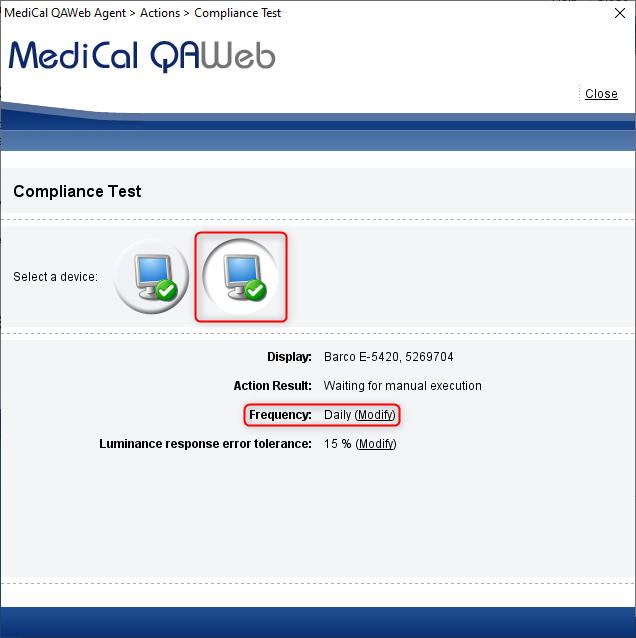

Verify changes on all monitors

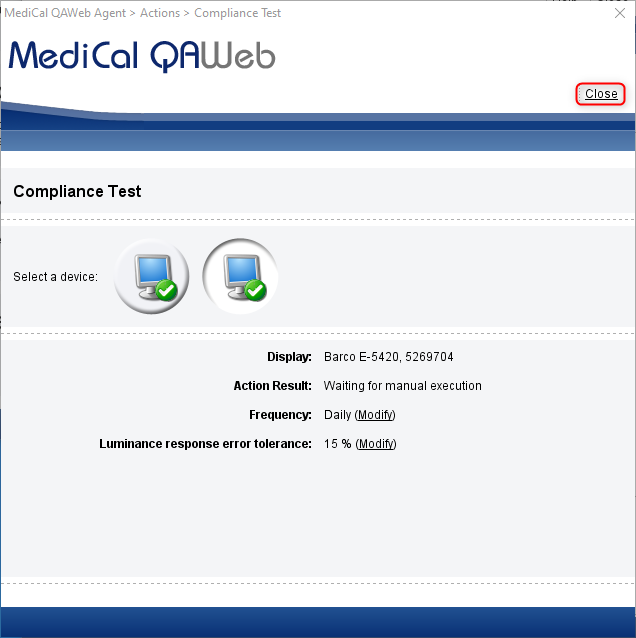

Click Close

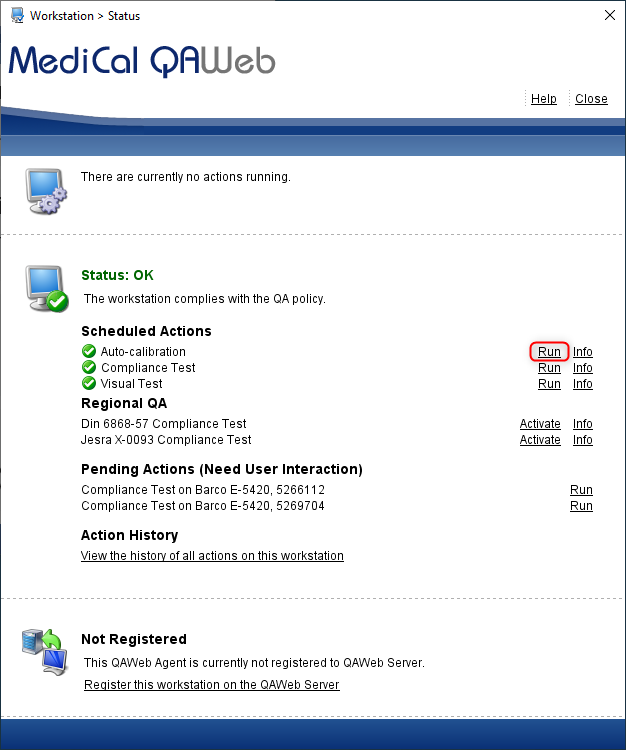

On Auto-Calibration, click Run
Wait for Auto-calibration to run

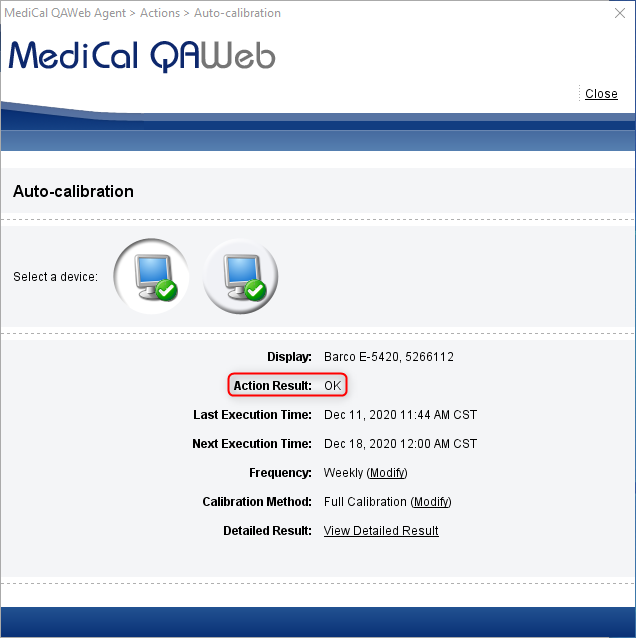

On the results page, take note of Action Result: OK

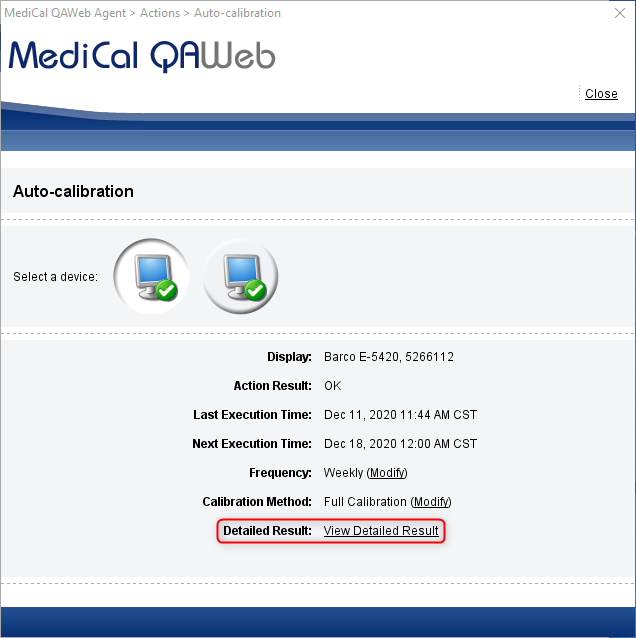

To view detailed report, on Detailed Result, click View Detailed Result

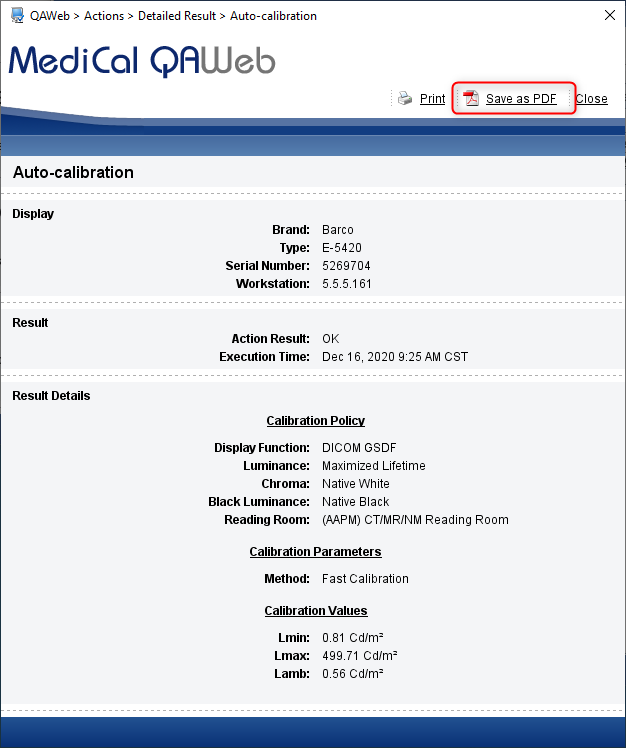

To save report, click Save as PDF

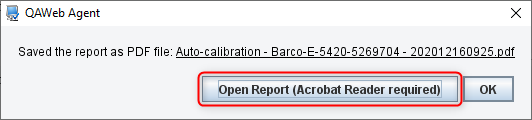

Click Open Report (Acrobat Reader required)
Save according to your PDF Reader Software
Following these steps for all monitors

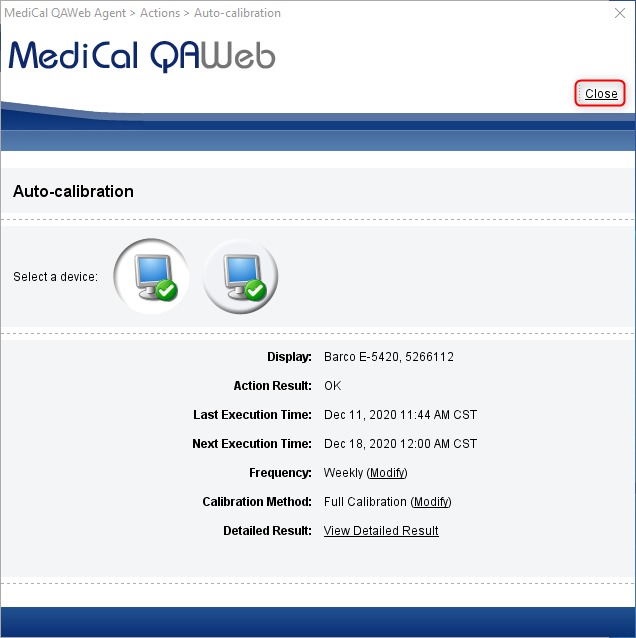

Click Close

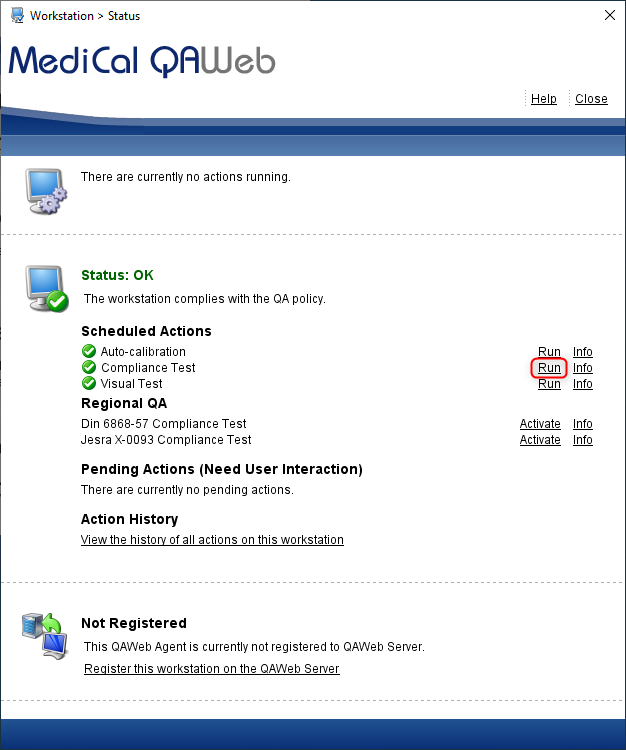

On Compliance Test, click Run
Wait for Compliance Test to run

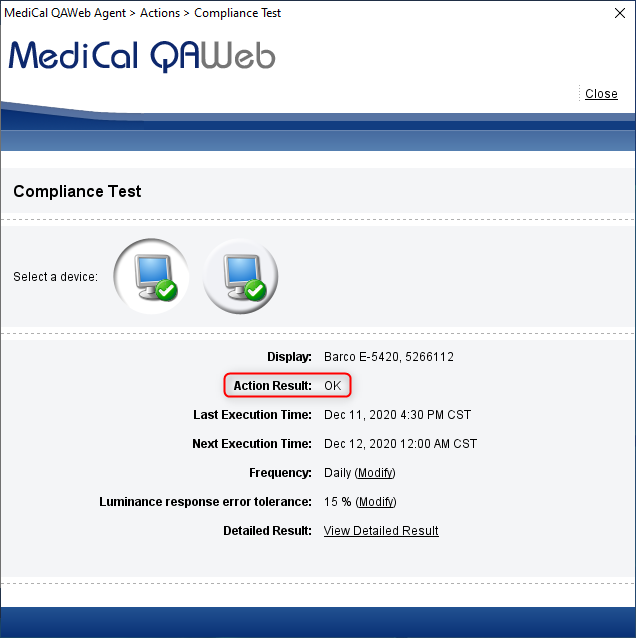

On results page, take note of Action Results: OK

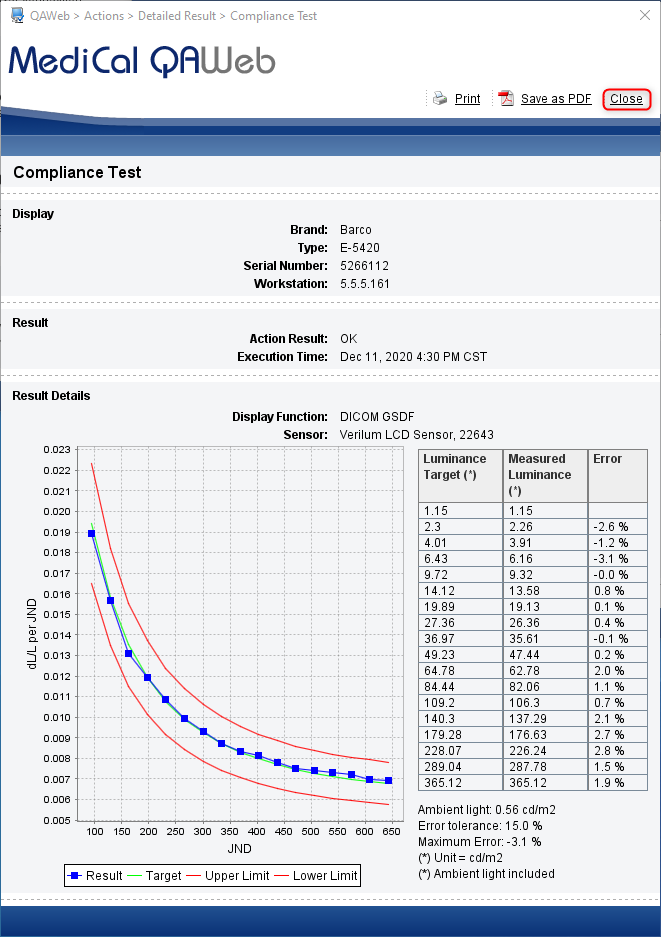

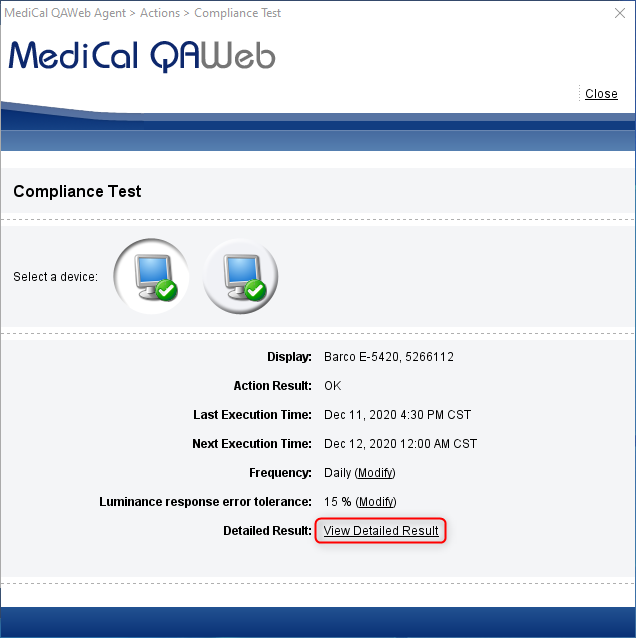

To view detailed report, on Detailed Result, click View Detailed Result

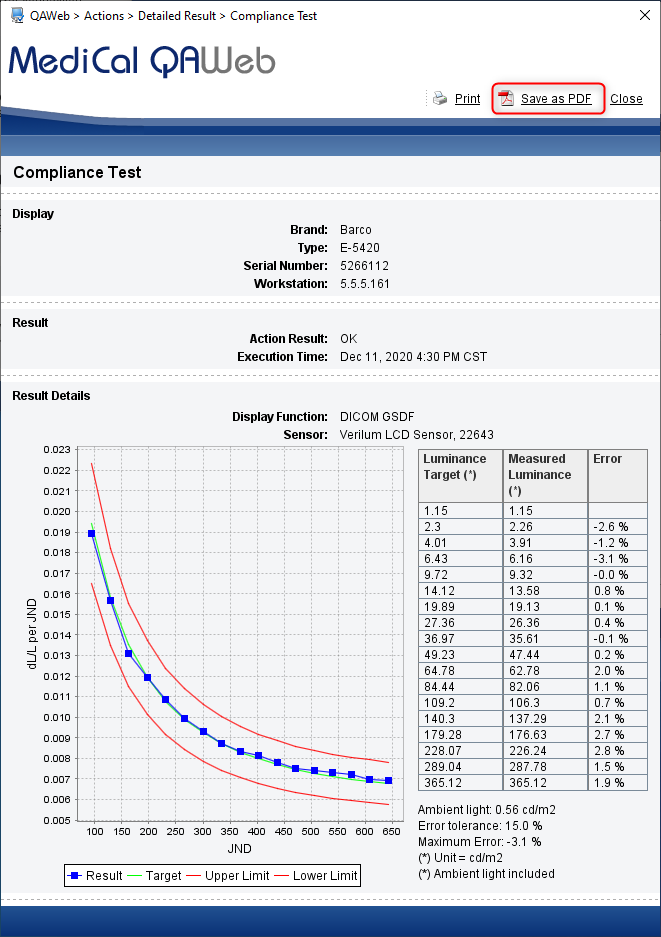

To save report, click Save as PDF

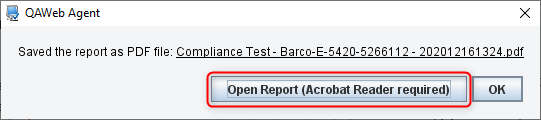

Click on Open Report (Acrobat Reader required)
Save according to your PDF Reader Software

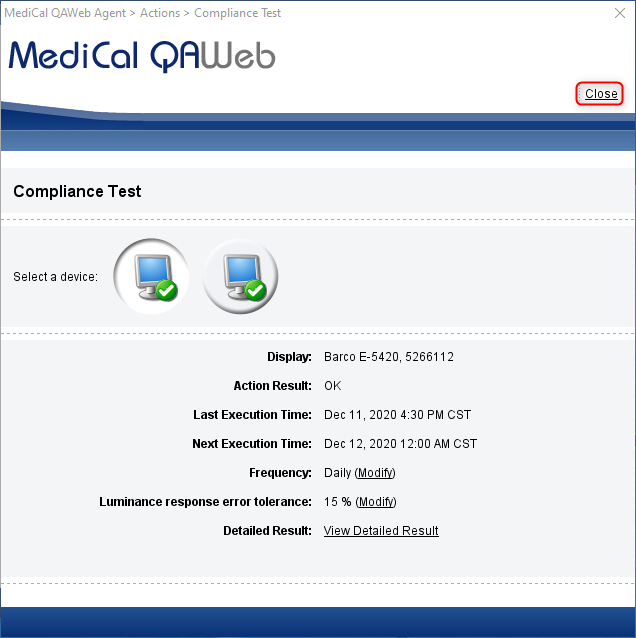

Click Close

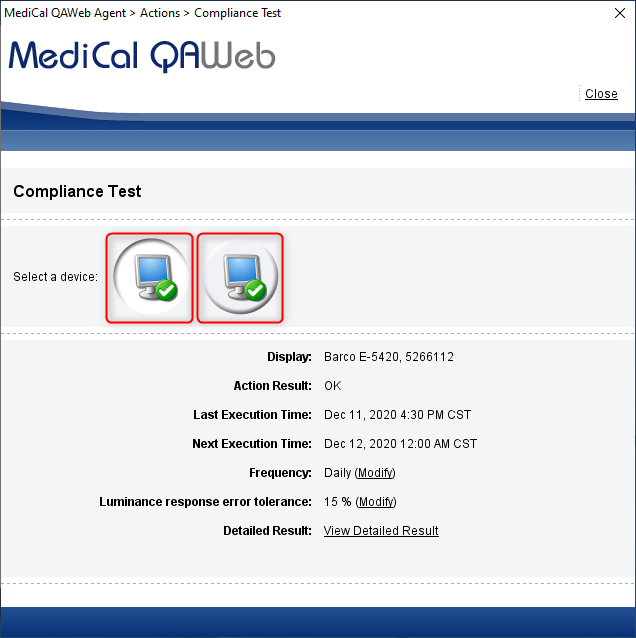

Following these steps for all monitors
Click Close
To view all reports performed on monitors, on Action History, click View the history of all actions on this workstation

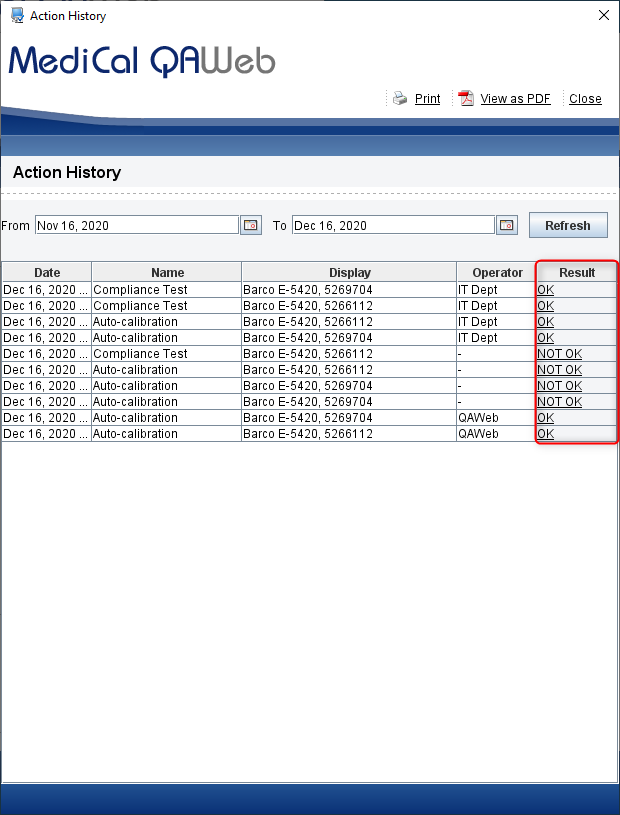

To view report, under Result, click on OK or NOT OK on desired report
Conclusion:
Your monitors should now be configured with the proper settings for auto-calibration and auto-compliance testing using the Barco Medical QAWeb, DICOM Calibration and QA Software.
